Lab Water Purification

Biochemical Water Ultra-Purification Machine

RO membrane cleaning manual button
Touch keyboard control
IC microcomputer intelligent control
Water resistance on-line monitoring

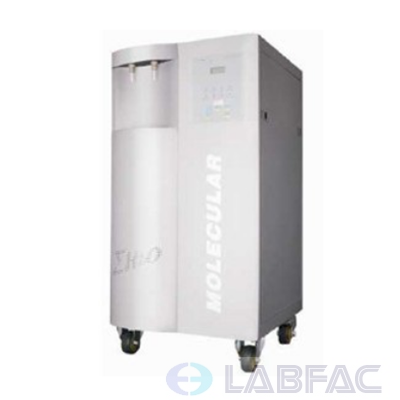

Product description: Biochemical Water Ultra-Purification Machine
INQUIRY

Basic Functions:
1. Built in RO membrane fouling prevention program, RO membrane cleaning manual button

2.Touch keyboard control, self-test, water shortage protection alarm, power-off protection

3.IC microcomputer intelligent control, built-in automatic cycle timing of ultra-pure water to maintain the water quality of ultra-pure water

4.Water resistance on-line monitoring

6.Digital display the time of regular intake or the water pressure

7. Built-in RFID chip ultra-purification package and pre-treatment package.

Basic Technical Parameters:
1. Water source: City tap water, water pressure0.1-0.3MPa
2. Outlet: resistance of II-class ultra-pure water is up to 18.25 MΩ.cm 25 ℃, conforming to China GB6682-2008 standards of II-class water and ASTM CAP NCCLS standards;
3. Absorbance (254nm, 1cm light path): = 0.001;
4. Soluble silicon (SiO2): <0.01ppm;
5. Particles (bigger than 0.22μm) content: <1/ml;

6. Power Supply 220V/50Hz, voltage fluctuation rate of ± 10%;
7. Working conditions: temperature 5-40 ℃, anti-freezing rooms are needed in cold areas;
8. Dimensions: Floor type: 650 * 850 * 1200mm

Application scope

Provide pure water for department of clinical laboratory, blood bank, research institute and biochemical equipment

Mode

Production rate

Molbiochem 510a/b/c/d 5L/H, Molbiochem 560a /b/c/d 60L/H

Molbiochem 520a /b/c/d 20L/H, Molbiochem 570a/b/c/d 70L/H

Molbiochem 530a/b/c/d 30L/H, Molbiochem 580a/b/c/d 80L/H

Molbiochem 540a /b/c/d 40L/H, Molbiochem 590a /b/c/d 90L/H

Molbiochem 550a /b/c/d 50L/H, Molbiochem 5100a/b/c/d 100L/H

City tap water as water source

Optional Configuration:
1. Pre-filter machine: when the water 200<TDS<250ppm, the model name of the tap water ends with a letter “b” (high content of sediment suspensions);

2. Softener: When the water 250<TDS<400ppm, the model name of the tap water ends with a letter “c” (hard water with high content of calcium and magnesium);

3. Desalination device: When the water TDS> 400ppm (high salinity), the mode name of the tap water ends with a letter “d”;
4. Rust iron pre-processor: When iron content in water > 0.3PPm
