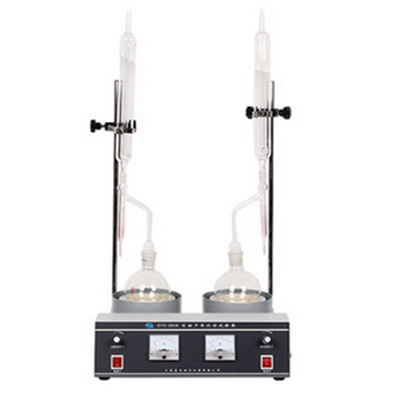

Water In Crude Oil Apparatus (Distillation Method)

Water In Crude Oil Apparatus (Distillation Method)

  • Model: PT-HK-1032A
  • Stepless solid-state voltage regulator
  • Voltmeter shows clearly
  • Simple operation with elegant structure
  • Product description: Water In Crude Oil Apparatus (Distillation Method)
  • INQUIRY

Overview

A knowledge of the water content of crude oil is important in the refining, purchase, sale, or transfer of crude oils. PT- HK-1032 Water content analyzer for crude oil (Distillation method) conforms to the ASTM D4006 standard Test Method for Water in Crude Oil by Distillation. It is used to test water in crude oil by distillation.

PT-HK-1032: single element

PT-HK-1032A: double elements



Features

1. Stepless solid-state voltage regulator, heating without fire, safety and reliability.

2. Heating jackets no flame, safe and reliable.

3. Voltmeter shows clearly, accurate temperature, good insulation properties.

4. Simple operation with elegant structure.



Technical parameters

1. Rated voltage: AC 220V±10% 50Hz

2. Power: 0~650W continuously adjustable

3. Heating method: Heating mantle

4. Adjust the display: AC voltmeter 0~250V

5. Temperature control mode: Stepless voltage solid-state regulator

6. Distillation flask: 1000ml

7. Accepting bottles: 5ml, scale 0.05ml

8. Liebig condenser: 400mm

9. Temperature accuracy: ± 0.1°C

10. Ambient requirements: temperature: 10~40°C, Humidity≤85%

11. Net dimension: 470*320*560mm,12kg
