Features:

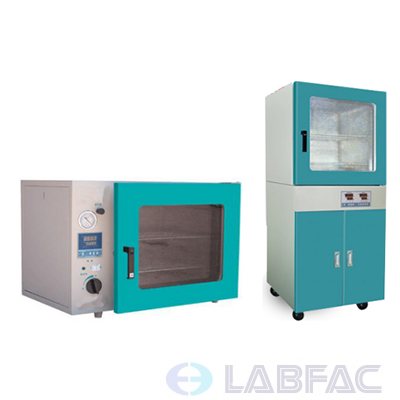

This vacuum drying oven number obviously, the microcomputer control, the double-decked steel bulletproof glass door, contains the straight association-like vacuum pump and the vacuum electromagnetism gasification valve, fixed time in the controller, the stainless steel the gallbladder.
Controls the warm scope: RT+10-250℃
In gallbladder material: 304 stainless steel plates
Box body structure: Upside is the work room, lower part is vacuum tank's toolbox
Vacuum degree: ≥133Pa
Sheathing material: The cold rolling steel plate static electricity spurts models
Box gate structure: Steel, bulletproof double-decked glass door
Thermal insulation material: Mineral wool
Baggage shelf: 3
Safety device: Has the excess temperature, protections and so on earth
Power: 2100W
Power source: AC220V /50HZ
The gate seals the material: The box gate closed loose and tight can adjust, the whole formation silica gel gate seals the circle, guarantees in the box the high vacuum degree
Temperature fluctuation: ±0.5℃
Precision is ±1℃, the 6020, 6050, 6090 and 6210 are with stainless steel inners, and the 6021, 6051 are with cold-rolled steel inners
Technical parameters:
|
Name |
Vacuum oven |
||||||
|
Type |
DZG-6020 |
DZG-6021 |
DZG-6050 |
DZG-6051 |
DZG-6052 |
DZG-6090 |
DZG-6210 |
|
Temperature controlling range |
Room temperature+50～200℃ |
Room temperature+50～250℃ |
Room temperature+50～200℃ |
Normal temperature |
Room temperature+50～250℃ |
||
|
Dimensions of working chamber(mm) |
300*300*275 |
300*300*275 |
415*370*345 |
415*370*345 |
415*370*345 |
450*450*450 |
560*640*600 |
