Introduction

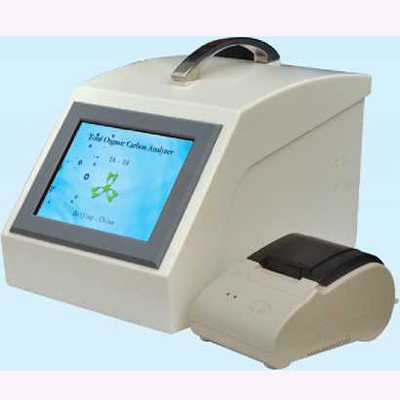

TA-2.0 Total organic carbon (TOC) is developed on the basis of the original offline total organic carbon analysis instrument, which can meet both online and offline test modes for the users. And 3 points can be online measured switching one by one, so the application is more extensive, which can completely meet various on-site use requirements for the customers, thus greatly reducing the on-line monitoring implementation cost for the customers.
Features
1. The instrument adopts no pump pipe design, and there is no need to configure the pressure reducing valve device for the online testing;
2. The instrument adopts the latest high-performance CPU processor, to expand the instrument function and improve the processing speed and accuracy;
3. The ultra-large capacity of storage space can be used as the real-time query for raw data;
4. Due to no pump pipe design, there is no need of online accessory (pressure reducing valve), to reduce customers' material use, simplify the installation procedure and make flow rate more stable;
Technical Parameters
|
Power Supply |
100-260VAC 50HZ,120W |
|
Conductivity Detection Range |
0.055卩s/cm-8.000卩s/cm |
|
Measure Range |
0.001mg/L 〜1.0mg/L(1 〜1000ppb) |
|
Test Accuracy |
±3% |
|
RSD |
Repeatability < 3% |
|
Resolution |
0.001mg/L |
|
Analyzing Time |
Continues Analyzing |
|
Response Time |
< 5mins |
|
Test Limit |
0.001 mg/L |
|
Sample Temperature |
1-95^ |
|
Ambient Temperature |
5-65，C |
|
Applied Range |
Online/Offline/ Cleaning Validation |
|
Audit trail |
Operational ,records > 3years |
|
Print Function |
External Printer |
|
Expansion Port |
Ethernet Port 232 Serial Port Power Output Port 4-20MA signal output |
|
Weight |
8.5KG |
|
Dimension(mm) |
400*240*270 |
