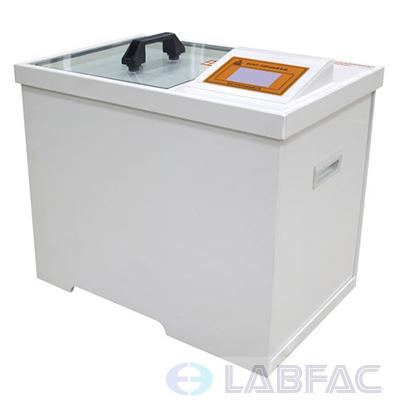

PCB Tin Plating Machine

  • Tin Plating Machine
Tin Plating Machine

Tin Plating Machine

  • Model: SUNY-ZDX300
  • Usage: realizing tin plating process of the circuit board processing through high-frequency double direction pulse electroplating power
  • Processing dimension: 250mm×300mm double-sided board
  • 8.Entire machine power: 300W (maximum)
  • Product description: Tin Plating Machine
  • INQUIRY

Specification:

  1. Usage: realizing tin plating process of the circuit board processing through high-frequency double direction pulse electroplating power;
  2. Processing dimension: 250mm×300mm double-sided board;
  3. ★Control system: high-performance ARM embedded processor + embedded operating system, human-computer interface: big screen color LCD screen + touch screen; In touch screen you can read electronic edition tin plating process manual; In touch screen you can play the circuit board design sketch after tin plating process;
  4. Function characteristics: precoated plating, electroplating short circuit and no plating open circuit testing;
  5. ★Electroplating power: all numerical control positive and opposite direction pulse electroplating power supply, the current range: 0~30A, adjustable 0.1 A step value, voltage: the highest DC6V;
  6. Structure features: adopting transparent cover, convenient for observation;
  7. Input power: AC220V/50Hz;
  8. Entire machine power: 300W (maximum);
  9. ★Optional configuration: Ethernet interface, realizing remote diagnosis, monitoring, booking open and close the machine and etc. through the wireless or local area network and the Internet, seamless connection with network management system and software, mating PCB network management software, providing long-term free upgrades service;
  10. Overall volume: length 630mm×width 430mm×height 580mm;
  11. Weight: 30Kg.

Check the video to see how to make the PCB(Printed circuit boards) with our machines:

https://www.youtube.com/watch?v=sQZVaeKhogs

The PCB boards produced by our machines:
