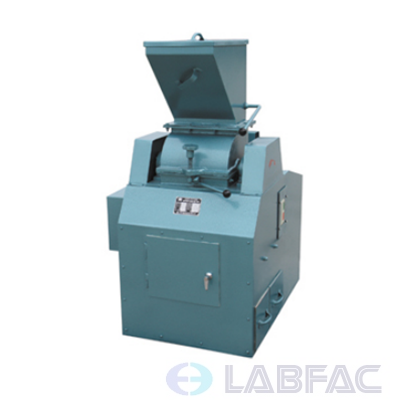

Sealed Hammer Cutter Crusher (With Splitting/Reduction Facility)

Model: CSI- DS150/ CSI-DS80
Totally sealed
No dust pollution
Conforming to the environmental protection requirement
Product description: Sealed Hammer Cutter Crusher (With Splitting/Reduction Facility)
INQUIRY

Summary:

This product is based on the advanced technology of sampling equipment, which is the new product developed according to GB474《preparation method of coal sample》, GB/T18666 《commercial coal quality inspection and acceptance method》, etc. It is mainly applied to coal, electricity, metallurgy, chemical engineering, environmental protection, geology, scientific research, etc.

Main feature:

1.Totally sealed, no dust pollution, and conforming to the environmental protection requirement.

2.The crushing cavity is made of steel. wear proof and durable, effectively preventing sample being polluted and over heat.

3.The hammer cutter material is Ni-WC35 ni-based tungsten carbide coated, which is of high strength and durableness. Could crush ore material of high strength and high hardness , such as coke, metal lump ore, pellet, etc.

4.The hammer is in symmetrical and cambered design, prolonging the service life of hammer cutter.

5. can crush the materials by whole section. The cavity will not be plugged. There is no phenomenon of dead ends depositing sample.

6.Use the classical reduction type. The separating part is made of stainless steel and the reduction rate can be adjusted flexibly. The coal with high moisture will not be plugged.

7.It can complete the crushing, mixing and separating rapidly, significantly improve the efficiency and will not lose moisture.

8.It is very convenient to operate, maintain and clean.

9.Operate steadily with low noise.

10.All driving components have protective facilities, meeting safety requirements of production.

Main technical parameters:

Model	CSI- DS150	CSI-DS80
Feeding size	≤150mm	≤80mm
Output size	<13、<6 (adjustable）	<6、<3 (adjustable）
Reduction rate	1/2-1/8 (adjustable）	1/2-1/8 (adjustable）
Productivity	3000-1800Kg/h	1800-1200Kg/h
Weight	550kg	350kg
Dimensions	1300×910×1650mm	1000×850×1350mm
Motor power	5.5kw+0.75kw	4kw+0.75kw
Working Power	Three-Phase 380V
Rotor form	Ni-WC35 ni-based tungsten carbide coated hammer cutter		Ni-WC35 ni-based tungsten carbide coated hammer cutter
