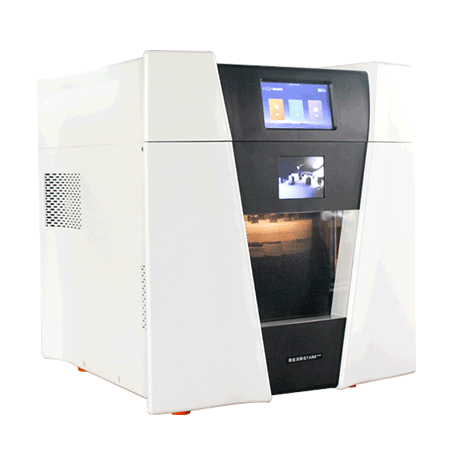

Microwave Digestion Workstation

Microwave Digestion Workstation

  • Model: TANK PLUS
  • Product description: Microwave Digestion Workstation
  • INQUIRY

Description
TANK PLUS Microwave Digestion Workstation is a brand new product released , which carries on the high quality of the TANK series. Focus on safety, efficiency, convenient and durable use, and also provides many features. Through accurate temperature/pressure control and high-efficiency dual magnetron non-pulse microwave heating technology, it can effectively improve sample digestion. With more than 20 high-standard technologies, it ensures the safety of laboratory personnel. At the same time, intelligent UI design, cloud services and other functions bring a comfortable operating experience to users.



Feature

Patented structurethe prefect combination of high-throughput digestion and high-pressure digestion.

High-strength aerospace composite fiber outer vessel, perfect within mechanical strength and corrosion resistance.

Safety Bolt design, being fully sealed and digested while achieving quantified safety pressure relief.

Optical-fiber and IR temperature measurement system, having precise temperature control and simultaneous monitoring of abnormalities to ensure accurate results and experiment safety.

High precision semiconductor pressure sensor with high corrosion resistance and high mechanical strength.

Dual magnetron inverter control system ensures consistent sample digestion

Powerful and convenient software assistant in accordance with FDA 21 CFR Part 11.

Support by the cloud service function, expanding the storage capacity while keeping the data in safe.

The digester integrated dual LCD screen display, clearly showing the digestion state and experiment process.

A variety of supporting tools available, easy to take Experiment.


Technical Parameters

Power

220~240VAC 50/60Hz 20A

Microwave source

2450MHz, dual magnetron design, high energy microwave emission

Installation power

3800W

Maximum output power

2000W

Microwave cavity

66L large volume 316L stainless steel cavity, inner and outer multi-layer corrosion-resistant

Teflon spray

Explosion-proof safety door design

Safety door designed based on 3-D directional explosion-proof mechanism, anti-microwave

leakage integrated with anti-flow groove structure design

Pressure monitoring system

High-precision novel semiconductor pressure sensor with pressure control range: 0~10MPa

(1450psi), control accuracy ±0.01MPa

Temperature monitoring system

Non-metallic multi-core optical fiber + full tank IR dual temperature measurement, temperature

control range: -40~305 °C, temperature control accuracy: ±0.1 °C

Passive protection system

COT real-time temperature and pressure anomaly monitoring system can automatically alarm and cut off microwaves to protect users' safety when temperature and pressure anomalies occur

in any one of the reaction vessels.

Software

Android system; video SOP; built-in method library; cloud service, data storage and sharing;

Wi-Fi remote connection, etc.

Communication ports

With USB port and network cable port

Video Monitoring

With an internal camera for real-time monitoring of the operation of the digestion vessel

in the chamber

Furnace exhaust system

Cool to room temperature for less than 15 minutes

Microwave extraction module

Normal pressure extraction experiment

Working environment

0~40℃ / 15~80%RH

Overall physical size / net weight

600*685*660 (Width*Depth*Height)/62kg

Vessel type

Self-pressure relief vessel

High pressure digestion vessel

Batch numbers

12 Vessels

40 Vessels

Inner Vessel material

TFM

TFM

Outer Vessel material

Aerospace composite fiber

Aerospace composite fiber

Rotor frame structure

Independent Frame vessel structure

High-strength integrated Carousel

Reaction vessel volume

100mL

70mL

Maximum design temperature

300℃

300℃

Highest design pressure

10MPa (1450psi)

10MPa (1450psi)
