Horizontal Hydraulic Universal Testing Machine

Brief Introduction

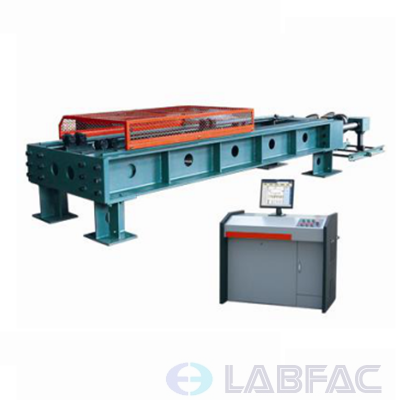

The machine adopts whole steel plate welding frame structure, single rod double-acting piston cylinder imposing test force, cylinder pin plug-in specimen, load sensor measure force, length can be adjusted step by step to stretch space according to the sample specification, computer screen control and display the test force and test curve, automatically process test data according to the requirement of the test method. The machine is special equipment that takes the tensile test one by one for lifting belt type, chain type and rope type, used in tension load one by one for lifting belt type products, destruction test, etc. Convenient operation, slow and smooth loading, strong body carrying capacity, etc.

Main technical parameters

1) Max testing force: 3000kN

2) Force measurement range: 60kN～3000kN

Gear ranges aren’t divided in whole process.

3) The accuracy of test force: ±1%

The test force resolution: 1/300000 yard

4) Test space (not including piston stroke) : 500-12000mm (step adjustment 500 mm one gear );

5) Piston stroke : 800mm

6) Displacement measurement range: 800mm

7) Displacement measurement resolution: 0.01mm

8) Pull head no-load fast speed: not less than 200mm/min.

9) Testing speed: 0-120mm/min

10) Work center height: 350mm

11)Measuring force method: load sensors measuring force.

12) Control testing method: computer automatically controls experimental process, computer screen displays test force and test curve, automatically processes test data according to the requirement of the test method.

13) Sample clamping method: cylinder insertion-type ( It also could be customized according to the sample provided by the user.)

14) Dimension( length*width*height): 15000x1200x500mm

15) It can display a variety of test curves: force - displacement, force - time, force - deformation, stress -strain, etc

16) The console separate from main machine , which has safe distance, main machine should have safety protection measures.

17) The facilities should be equipped completely, including force valve calibration system, anchor bolt, etc.
