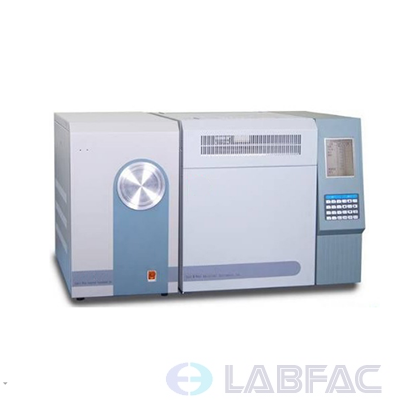

Gas Chromatograph

  • Gas Chromatography
Gas Chromatography

Gas Chromatography

  • GC - MS 3100
  • Special capillary
  • Eight-stage process heating system
  • GC / MS capillary connections and temperature control device
  • Product description: Gas Chromatography
  • INQUIRY

I. Gas chromatography

1, Capillary split / splitless injection system;

2, Special capillary;

3, Eight-stage process heating system;

4, GC / MS capillary connections and temperature control device;

5, Large-screen LCD display;

6, Automatic door, over-temperature protection device;

7, Auxiliary gas circuit unit of reserved gas chromatography detector;



II. MS system
1, EI electron bombard ionization source (standard);
2, Quadrupole mass analyzer (1.5-800AMU);
3, High-voltage conversion dynode and electron multiplier (0 ~ 3KV);
4,2 L / S rotary vane front-stage vacuum pumps;
5,Turbo molecular pump (70L / S, 150 L / S, 240 L / S);
6, High and low vacuum gauges;
7, MS tuning standard sample (perfluorinated tributylamine) and the control unit;


III. Data processing system
Configuration: brand computer with 17-inch LCD monitor, HP 1008 laser printer, all-English Windows 98, Windows XP and Windows 2000 software systems
Auto / manual tuning;
Fault diagnosis;
Qualitative and quantitative determination;
QA report complete library search and information output  ;
Internationally recognized standard spectrum library such as NIST and Wiley can be chosen;

Oil Analysis Software Kit (optional);


IV Gas source: high purity helium (99.999% gas, bottle, valve)

Maintenance tools and spare parts
Shifting spanner
Inner hexagon spanner

Inlet insulator (inlet low-loss pad)
Capillary column installation tool (with connecting nut and socket)
Gas pipeline and nut
Imported sealed ring (large, medium and small for each)
Ion source cleaning kit
Isothermal transmission lines and localization tools of capillary column
Spare filament (two pieces)
Operation Manual (hardware manuals, software manuals for each)
Note: The carrier gas and capillary column can be determined is negotiable.


Application
Mainly used for qualitative and quantitative analysis of unknown samples Monitoring of harmful substances in the environment

1. Military industry: monitoring of anti-chemical warfare, confined space on ships air and

pollution monitoring
2. Public security: drug monitoring, explosives detection
3. Chemical: detection of pure substances and impurities, monitoring of chemical process
4. Pesticide residues in Food
5. Food additives, such as: sorbic acid, benzoic acid, etc.
6. Carcinogens in food
7. Harmful residues in bakery products
8. Harmful residues in edible oil, wine, water and drinks
9. PVC in packaging materials
10. Methanol and vitamin-Ein cosmetics
11. Harmful residues in paint and dye
12. Health products
