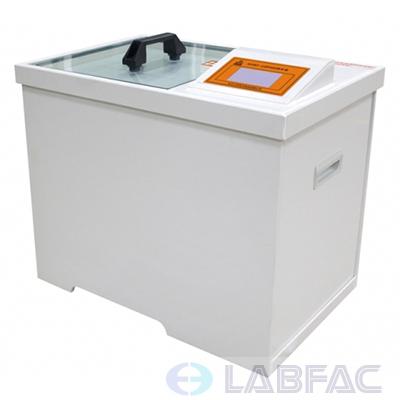

Specification:
-
Purpose: for the flush out of laser plotting film;
-
Flushing process: constant temperature flush by deep groove circulation pump with film fixture;
-
With the cover detection function, better protect the safety of operators;
-
High-performance ARM embedded processor + embedded operating system, man-machine interface: big screen color LCD screen + touch screen; In touch screen you can read the electronic production process specifications; In touch screen you can play designsketch of circuit board after the production process;
-
The machine uses anticorrosive PVC frame structure, with excellent and acid-base resistance properties, which can prolong the life of the machine;
-
Optional configuration: network interface, realizing data transmission and remote control through the Internet network;
-
Size of developing films: 400mm×290mm;
-
Time of developing films: 30s～120s;
-
Developing method: self-circulation pump developing;
-
Solution capacity: developer: 11 L fixative: 11 L;
-
Input power: AC220V/50HZ/1KW;
-
Overall dimension: 730mm×690mm×650mm
-
Weight: 70KG.
Check the video to see how to make the PCB(Printed circuit boards) with our machines:
https://www.youtube.com/watch?v=sQZVaeKhogs
The PCB boards produced by our machines:
