Vertical Pressure Steam Sterilizer

  • Electric-Heated Vertical Steam Sterilize (Fully automatic microcomputer)

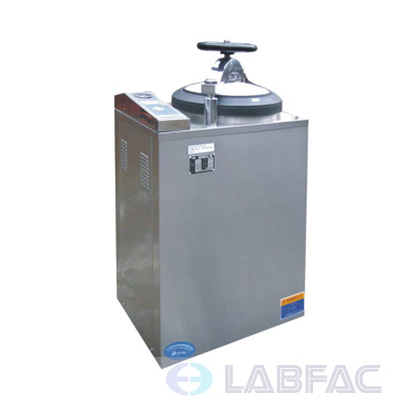

Electric-Heated Vertical Steam Sterilize (Fully automatic microcomputer)

Electric-Heated Vertical Steam Sterilize (Fully automatic microcomputer)

  • Model: VAC-LS-35HG/50HG/75HG/100HG
  • Fully stainless steel structure
  • Hand wheel type of quick-open door structure
  • Door safety lock system
  • Product description: Electric-Heated Vertical Steam Sterilize (Fully automatic microcomputer)
  • INQUIRY

Characteristics:

1. Fully stainless steel structure

2. Hand wheel type of quick-open door structure

3. Door safety lock system

4. Automatically controlled by computer

5. Digital display of working status, touch of key

6. over temperature over pressure auto-protection

7. Steam-water inner circulation system: no steam discharge, and the environment for sterilizing will be clean and dry

8. Self-inflating type seal

9. Safe protection of water lacking

10. The drying system is optional, which can be equipped according to the customers' request

11. Automatically shut off with beep reminding after sterilization

12. With two stainless steel sterilizing baskets


Technical Data:

Technical Data

VAC-LS-35HG

VAC-LS-50HG

VAC-LS-75HG

VAC-LS-100HG

Chamber volume

35L

(φ318×450)mm

50L

(φ340×550)mm

75L

(φ400×600)mm

100L

(φ440×650)mm

 Working pressure

0.22MPa

Working temperature

134℃

Max working pressure

0.23Mpa

Heat average

≤±1℃

Timer

099min or 099hour59 min

Adjustment of temperature

0134℃

Power

2.5KW/AC220V.50Hz

3KW /AC220V.50Hz

4.5KW /AC220V.50Hz

Overall dimension

600×410×1030mm

650×410×1140 mm

690×470×1140 mm

730×510×1270 mm

Transport dimension

730×500×1170 mm

730×500×1290 mm

760×550×1290 mm

820×600×1380 mm

G.W/N.W

96Kg/ 77Kg

102Kg/ 83Kg

120Kg/98Kg

135/110Kg
