Kinematics Viscometer

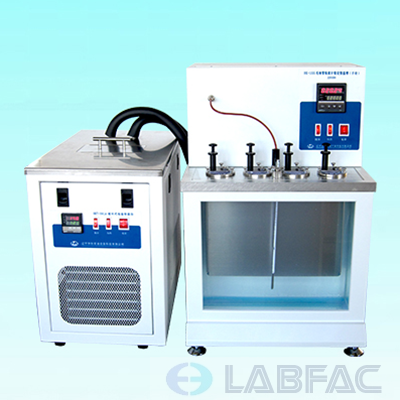

Capillary Viscometer Verification Constant Temperature Bath

Model: PT-HK-155
Rated voltage:AC220V±10% 50Hz
Heating power:800W
Mode of temperature control: digital display controller
Product description: Capillary Viscometer Verification Constant Temperature Bath
INQUIRY

Overview

Capillary Viscometer Verification Constant Temperature Bath conforms to the JJG155 verification regulation of working capillary viscometers. It is used for testing all kinds of capillary viscometers (ASTM D445& D2171).

Features

1.The instrument can test 2 pieces (4 pieces) of viscometers at the same time, improve the verifying efficiency.

2.The instrument adopts high-accuracy digital display controller, high accuracy of temperature control.

3.The instrument adopts glass bath, diaphaneity is good. The bottom is equipped with annular lighting, easy to observe. 4.Stiring assembly adopts electrical machine, path temperature is constant.

5.Organic glass insulation barrel is equipped outside the vitreous bath; accuracy of temperature control is improved.

6.Top cover of the bath is equipped with new type Viscometer clip, flexible and easy to operate.

7.The instrument adopts stainless steel heater, guide plate, corrosion prevented and long lifetime.

8.Easy to operate, rational construction with attractive appearance.

Technical Parameters

1.Rated voltage:AC220V±10% 50Hz

2.Heating power:800W

3.Mode of temperature control: digital display controller

4.Sensor: Pt100

5.Bath temperature:20℃ (must equip with HKT-001 Circulating low temperature constant temperature bath)

6.Accuracy of temperature control: ±0.01℃

7.Stirring mode: electrical machine stiring,1200r/min
